  • SP-160X03T Pump with 12"" cable (for Square/Round Cascading Pillars Fountains) *Threaded Plug (PLEASE READ COMPATIBILITY)
1 of 1

Parts

SP-160X03T Pump with 12" cable attached (for Cascading Pillar Fountain) *Threaded Plug (READ COMPATIBILITY)

SKU: SPK160X03-T

SPK160X03-T
Regular price $25.45
Regular price $0.00 Sale price $25.45
Shipping & handling is included in the product price
Shipping calculated at checkout.

NOTE: THIS PUMP CAN BE USED A SUBSTITUTE FOR # SP-160X01T. THE ONLY DIFFERENCE IS THE WIRE ON THE SP-160X03T IS A FEW INCHES LONGER.

PLEASE READ THE FOLLOWING NOTE ABOUT COMPATIBILITY:

  • If your old pump is model# SP-160X01T (ends with T) then you can order this pump without needing a plug adapter.

  • Examples of solar panel model numbers that have the new threaded-style plug:
    SF0W6ST, SB1W1ST, SB1W5ST, SB1W5DT, SB2W0DT

    If your solar panel is one of these numbers then no you do not need a plug adapter.
    -----------------------------------------------------------------------------------
  • If your old pump is model# SP-160X01 (does not end with Tthen you have a an older version which has a discontinued plug style. When you order new pump model# SP-160X01T you will also need to order a plug adapter which is part# PA-10 to be able to connect it to your solar panel which would have an older version of the plug. The plug adapter goes in between the plugs and lets you connect a new pump with a threaded style plug to an old panel with a push together style plug.
  • Examples of solar panel model numbers that have the discontinued push-together style plug:
    SF0W6S, SB1W1S, SB1W5S, SB1W5D, SB2W0D
    If your solar panel is one of these numbers then yes you will need a plug adapter PA-10 to be able to connect this new pump.
    If you already have a plug adapter from a previous order then you can order just the pump.
    -----------------------------------------------------------------------------------
  • The other option is ordering both a new pump and new panel in a kit.
    Here are options for kits:
    Kits For 3-Tier Fountains (with solar panel in the top)

    3090PKS-T (standard solar with panel, pump, tube kit)
    3090PKD-T (solar-on-demand with panel, on/off switch, battery, pump, tube kit)

PUMP SPECS:

  • Internally brushless pump with 12 inch (0.3m) wire attached
  • 4 to 12 volts max, 3.5 watts max, liquid temp 35°C (95°F) max, IP68
  • Has a threaded style plug
  • Comes with impeller, cover, and filter (on the inside)
  • Has a 12 inch cable to use with certain pouring/cascading style fountains
  • Requires either a solar panel or AC adapter to operate
  • For use in these solar fountains with integrated style solar panels:

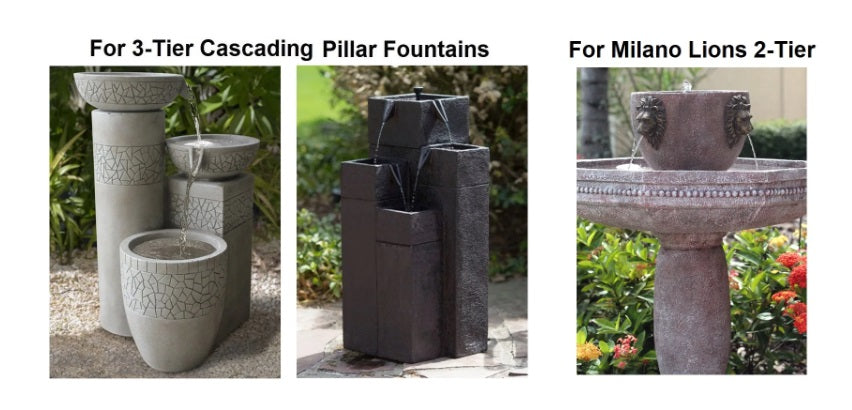

    Black Square or Grey Round Cascading Pillar Fountains (panel is located in the fountain under water, instead of out of the fountain on the ground)
  • For use with solar panels: SB1W5ST, SB2W0DT
  • Replaces pump model #SP-160X03T without any additional parts needed.
  • When replacing pump #SP-160X03 you need to also order a Plug Adapter

SHIPPING:

  • This item ships via US Postal Service. See exceptions:
    If ordering multiple replacement parts and the total weight is over 1 lb then the order may ship via Fed Ex.
    If combined with a replacement part that ships via Fed Ex then the whole order will ship via Fed Ex.
    If you order a replacement part and a full product they ship from different warehouses so they will ship separately.
