Pump with Splitter (for Fountains with 2 Panels) *Threaded Plugs

PLEASE READ THE FOLLOWING NOTE ABOUT COMPATIBILITY:

• If the model# on your old pump ends with T (such as SP-160X01T, SP-160X03T, or SP-160X12T) which indicates that it has threaded style plugs then you can order this pump.

• If the model# on your old pump is SP-160X3C then it has push together style plugs which is discontinued and you need to order both pump, splitter, and solar panels in a kit. Here is a link to the kit based on the fountain you have:
  2030PKS-T​​​​​​ (with 2 panels, 1 splitter, 1 pump) for fountain with statue in center


SPECS:

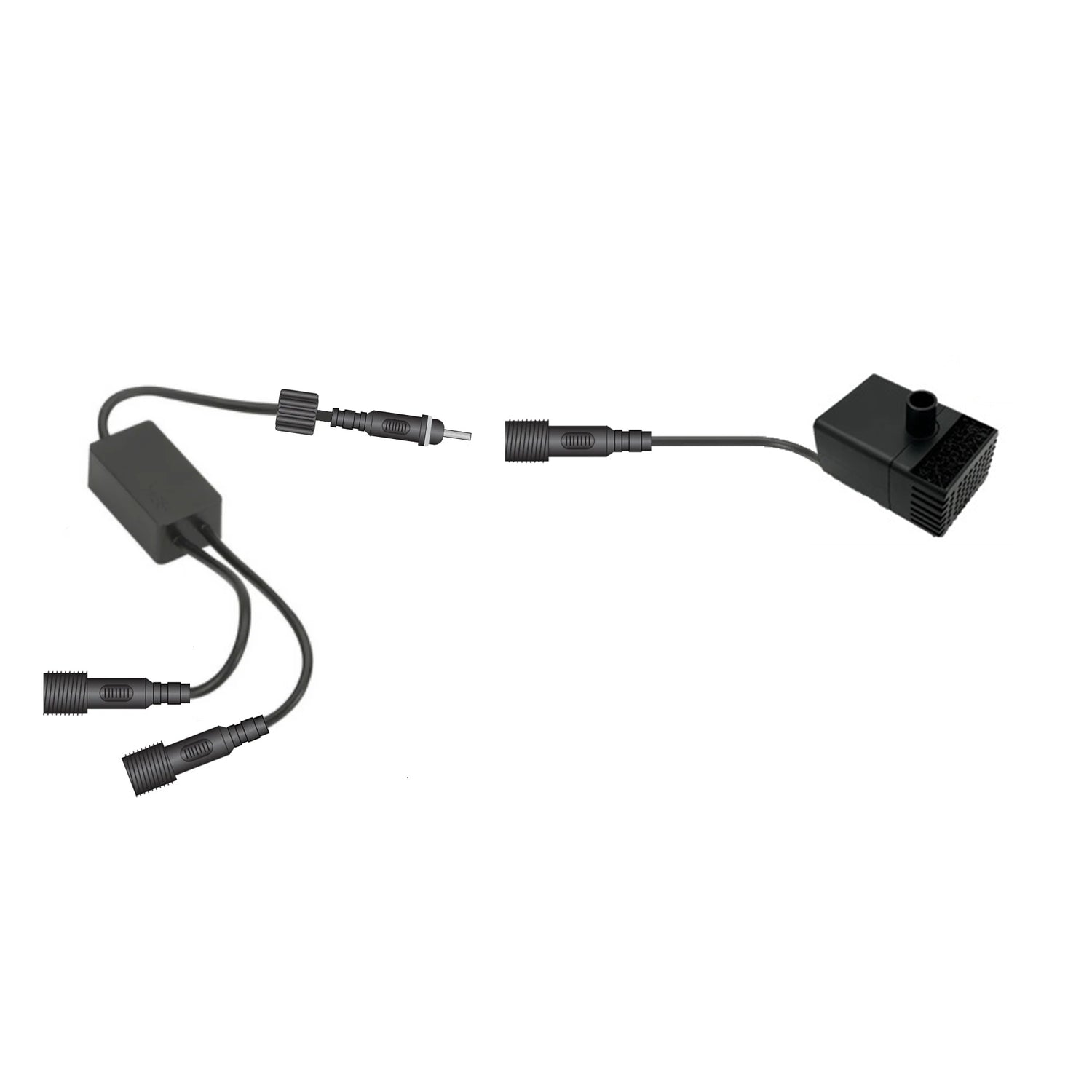

• Includes pump# GPA4T and splitter# Y-CONNECTOR-T
• Pump# GPA4T has replaced pump# SP-160X01T (discontinued)

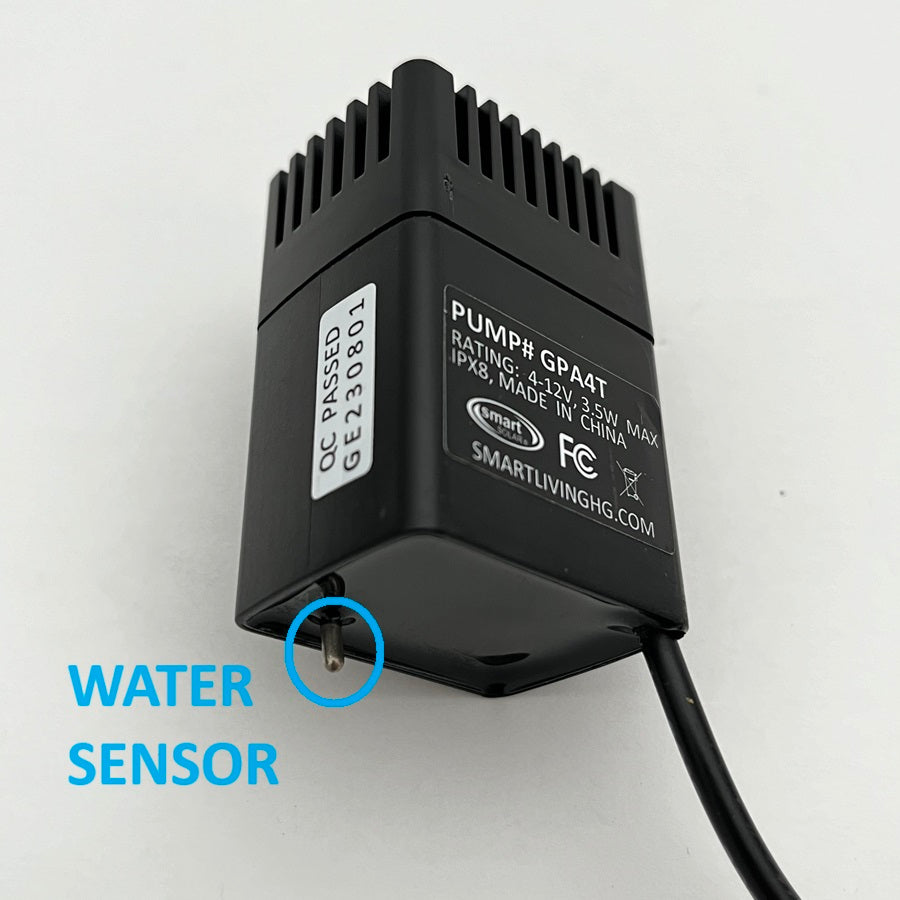

• Internally brushless motor, 4 to 12 volts max, 3.5 watts max, liquid temp 35°C (95°F) max, IP68, with water sensor pin

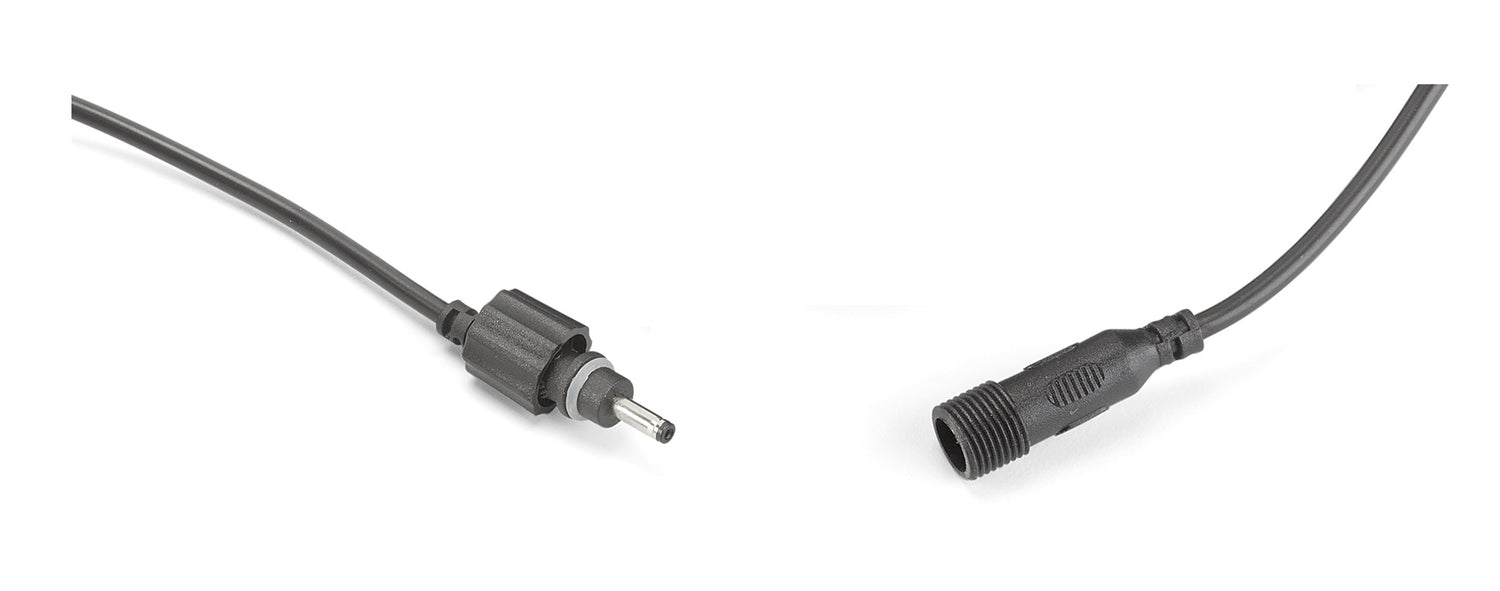

• Parts have threaded style plug with center pin plug

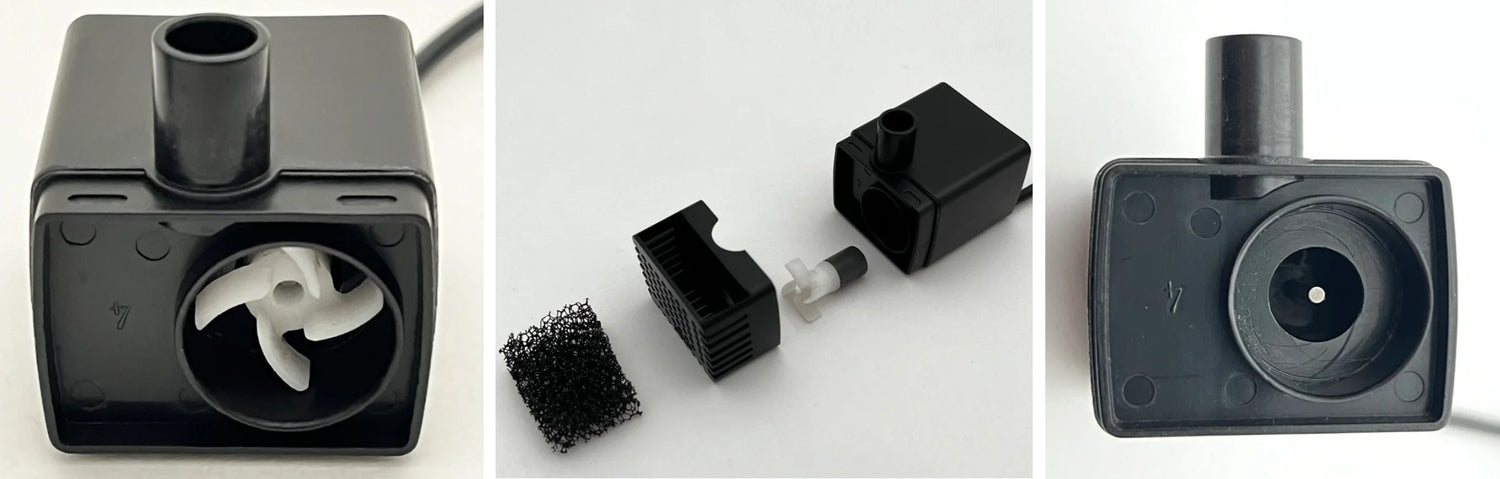

• Pump has impeller, cover, and filter

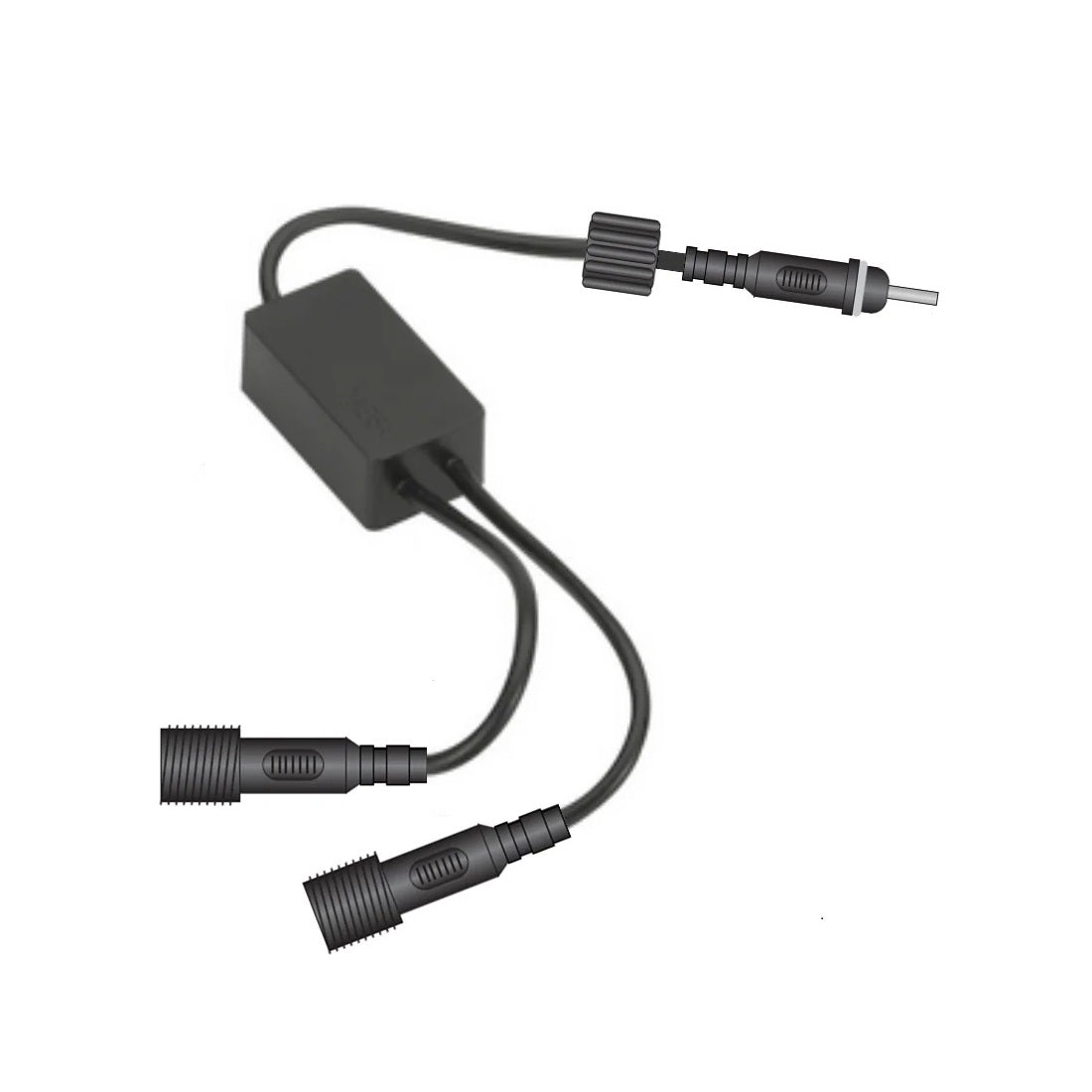

• Splitter has with a built-in capacitor
• Not Included: pair of solar panels are sold separately
• Compatible with dual solar panels model #SF0W6ST or GD0W8ST
• For use with these products only:
  Solar Pineapple Finial 2-Tier Fountain
  Solar Umbrella Fountain with Boy & Girl (statues may vary)
  Solar Zen Fountain (animal statue may vary)
  (panels are located in the fountain, not out of the fountain on the ground)


SHIPPING:

• This item ships via US Postal Service. See exceptions:
  If ordering multiple replacement parts and the total weight is over 1 lb then the order may ship via Fed Ex.
  If combined with a replacement part that ships via Fed Ex then the whole order will ship via Fed Ex.
  If you order a replacement part and a full product they ship from different warehouses so they will ship separately.

Instruction Manual
